Single Suction Single Stage Centrifugal Blower
MODEL
BIOP/BTOP/BBOP/
BROP/BTS
BROP/BTS
For Oil & Gas, Petrochemical Plants, etc.
Product Outline
DMW’s single suction single stage centrifugal blowers are designed and manufactured based on the following concepts.
High Efficiency
CFD analysis is used to design the impeller and the passage to improve efficiency and reduce shaft power.
High Reliability
The fan consists of well-proven components manufactured with our advanced processing technology.
Quiet Operation
Rotor imbalance is corrected with a dynamic balancer to suppress vibration during operation.
This enables stable continuous operation for a long period.
Material
| Part Name | Standard Material |
|---|---|
| Impeller | Carbon steel, stainless steel |
| Boss | Carbon steel, stainless steel, forged steel |
| Shaft | Carbon steel, stainless steel, forged steel |
| Casing | Carbon steel, stainless steel |
| Bearing | Antifriction |
| Bearing housing | Cast iron |
MODEL BIOP
Accessories
- Inlet guide vane
- Discharge damper
- Actuator
- Suction silencer
- Suction filter
- Expansion joint
- Control panel
Structure of Model BIOP
Capacity Control

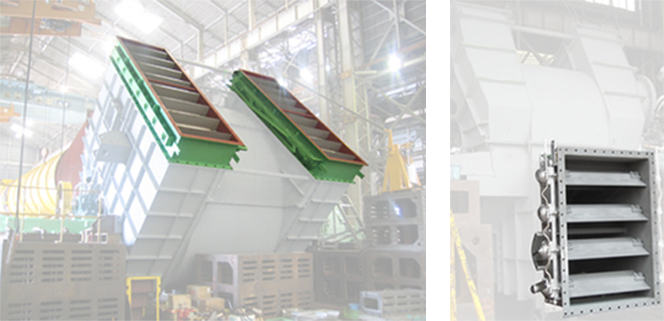

Damper

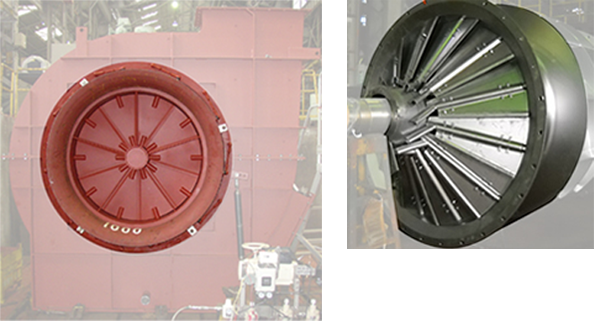

Inlet guide vane
Bearing Design
-
Antifriction bearing unit
Deep groove ball bearings
Oil bath lubrication
Integral bearing housing
Oil scraper
